ILME SQUICH connectors for Type J thermocouples

Click2Contact

Fast, tool-less connectivity is shaping the future of modern electrical systems, transforming how they are powered and managed. Simplifying the assembly and mounting of connectors is important to boosting efficiency and flexibility in industrial and small-scale settings.

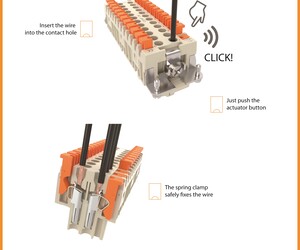

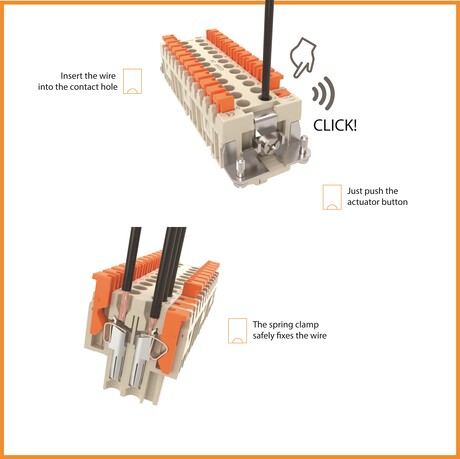

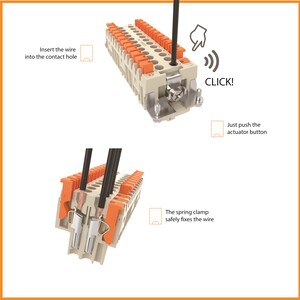

ILME’s SQUICH technology allows for tool-less connection at the push of a button while providing resistance to extreme temperatures, shocks and vibrations. Now, the SQUICH Series has been further enhanced with the addition of the latest variant for Type J thermocouples.

Type J thermocouples are widely used in temperature-sensing applications where precision monitoring is critical, such as die-casting, moulding and process engineering.

The CSHT Series for Type J thermocouples is the latest variant of the established SQUICH CSH Series, and is available in 10-, 16- or 24-pole inserts. It has two rows of contacts: one made from iron (Fe, gold-plated for corrosion resistance), and the other from constantan alloy (CuNi), for consistent temperature readings over time. It also has a wide temperature range for Type J thermocouples, from -210 to +760°C, and full compatibility with prepared, unprepared and solid wires.

The CSHT Series integrates seamlessly with the existing range of SQUICH solutions.
