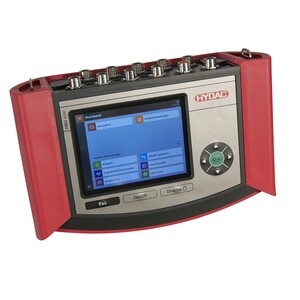

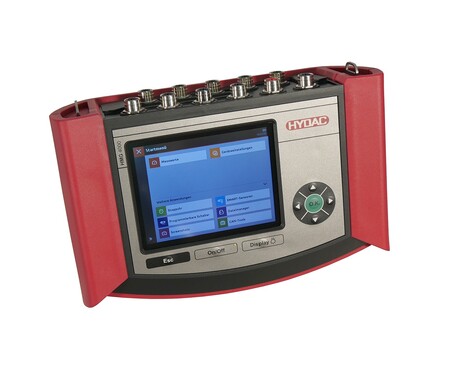

The HYDAC HMG 4000 is a versatile handheld measuring and data logging device designed to simplify hydraulic system testing, troubleshooting and maintenance.

With the ability to record signals from up to 38 sensors simultaneously and display up to 100 measurement channels, the HMG 4000 is designed to provide a comprehensive overview of machine performance. It measures key parameters such as pressure, temperature, flow rate and position, helping technicians identify potential issues and make informed maintenance decisions.

Its large 5.7-inch colour touchscreen and intuitive menu make operation straightforward, while automatic sensor detection helps reduce setup time. The device also captures dynamic machine processes in real time, displaying measurement curves and graphs for easier analysis.

For more demanding applications, optional CANbus connectivity enables the recording of additional machine data, including motor speed and pressure. The device’s generous memory stores up to 500 measurements, with up to eight million measured values, supporting detailed analysis and documentation.

The HMG 4000 allows measurement data to be visualised, processed and evaluated on a PC.

For more information: www.hydac.com.au/hmg-4000.html.
